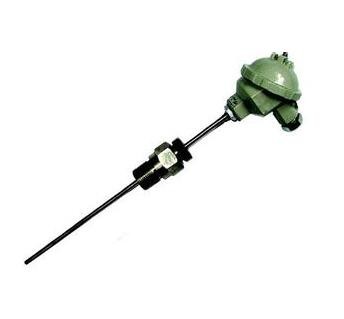

Bearing thermal resistance

Product Description:

Bearing thermal resistance is suitable for temperature measurement in bearings with bearing equipment and other occasions that require shock resistance. The thermal resistance of the bearing is equipped with a shock-absorbing structure, which enables it to be firmly attached to the surface of the tested bearing, thereby improving the accuracy of temperature measurement.

Main technical parameters

Electrical export: M20*1.5,NPT1/2

Connection size: M27*2,NPT1/2

Protection level: IP65

Bearing thermistor model and specifications

Model	Graduation	Temperature measurement range ℃	Thermal response time	Specification diameter	Specification length
WRNT-316T	K	0~300	≤6S	Φ6	100
WRNT2-316T	K	0~300	≤6S	Φ6	150
WRET-316T	E	0~300	≤6S	Φ6	200
WRET2-316T	E	0~300	≤6S	Φ6	250
WZPT-316T	Pt100	0~100	≤6S	Φ6	300
