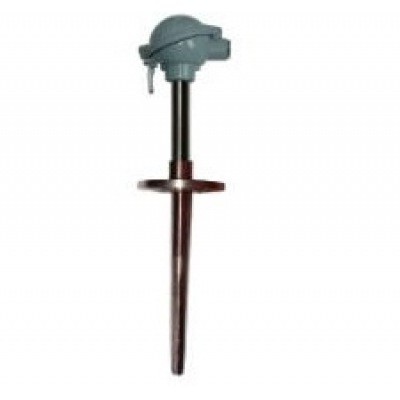

Wear resistant and leak resistant thermocouple

1. Application

Wear resistant and leak resistant thermocouples use a clamped wire inside the thermocouple to prevent oil or gas leakage. Suitable for production sites with high wear-resistant solid particles or fluids, it is an indispensable temperature measurement device in refineries.

2. Main technical parameters

Electrical export: M20X1.5NPT1/2

Wear resistant head hardness: HRC62-65

Protection level: IP65

Explosion proof level: d‖BT4,d‖CT5

Nominal pressure: 2.5MPa

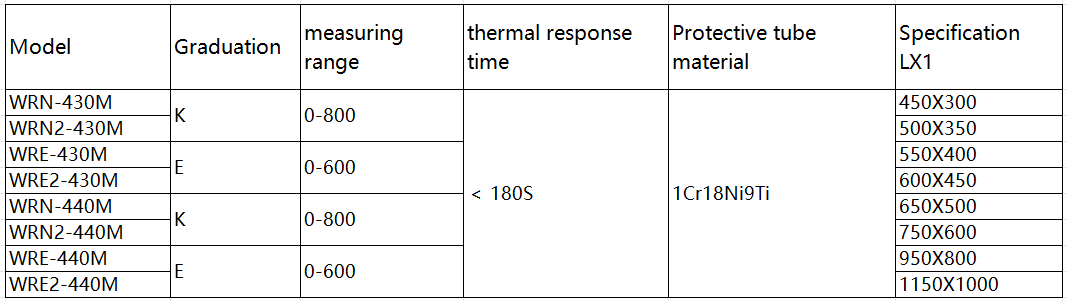

3. Model and specifications
