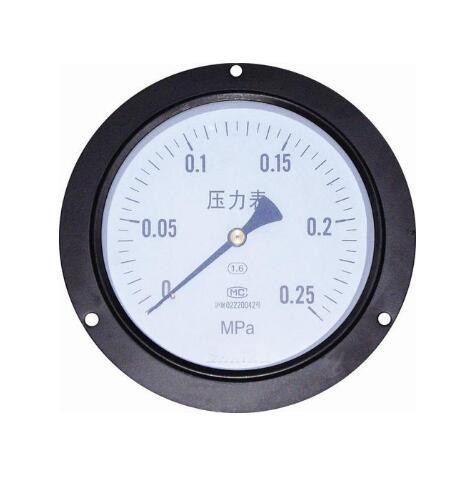

Y150ZT axial edge pressure gauge

Introduction to Axial Edge Pressure Gauge:

Axial pressure gauges are easy to install and widely used in various industries such as water systems, chemicals, and petroleum. The housing of a pressure gauge is generally made of stainless steel, with a surface material of glass. The pressure gauge components include spring tubes, etc. Under the action of pressure and vacuum, the spring tube undergoes elastic deformation, causing displacement at the end of the tube. The displacement is amplified by a mechanical transmission mechanism, transmitted to an indicator device, and then indicated by a pointer on a graduated disc engraved with legal measurement units to indicate the measured pressure or vacuum value.

Working principle of axial edge pressure gauge:

Under the action of pressure and vacuum, the spring tube undergoes elastic deformation, causing displacement at the end of the tube. The displacement is amplified by a mechanical transmission mechanism, transmitted to an indicator device, and then indicated by a pointer on a graduated disc engraved with legal measurement units to indicate the measured pressure or vacuum value.

Principle of axial edge pressure gauge:

In various fields such as industrial and agricultural production, national defense construction, scientific research, and people's daily lives, the use of liquid, gas, steam and other media as power for heating, sealing tests, and performance tests reflects the physical quantity of "pressure". Therefore, it is necessary to use various instruments and meters that can display pressure values to measure the magnitude and changes of pressure, in order to ensure the normal operation of production, scientific research, and people's lives.

The use of pressure gauges is extremely common, covering almost all industrial processes and scientific research fields. Pressure gauges are widely used in thermal pipelines, oil and gas transmission, water and gas supply systems, vehicle maintenance and repair shops, etc. It is mainly used to measure the pressure of the medium.

Y-60ZT/100ZT/150ZT axial pressure gauge

Axial pressure gauges are suitable for measuring the pressure of liquids, gases, or vapors that are non explosive, non crystalline, non solidifying, and have no corrosive effect on copper and copper alloys.

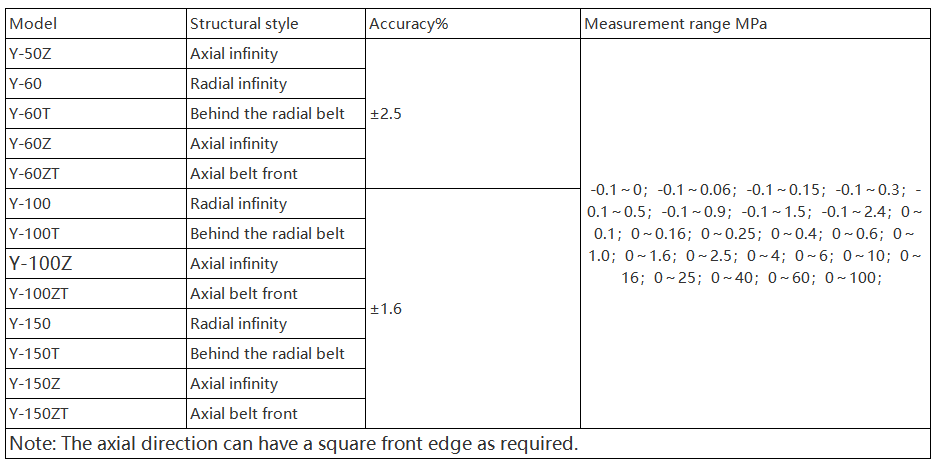

Model name:

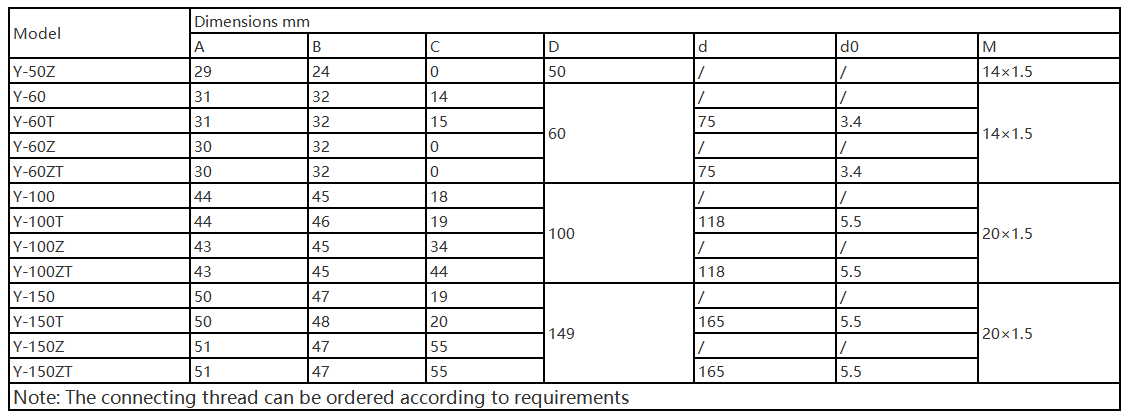

Technical parameters:
