Product Description:

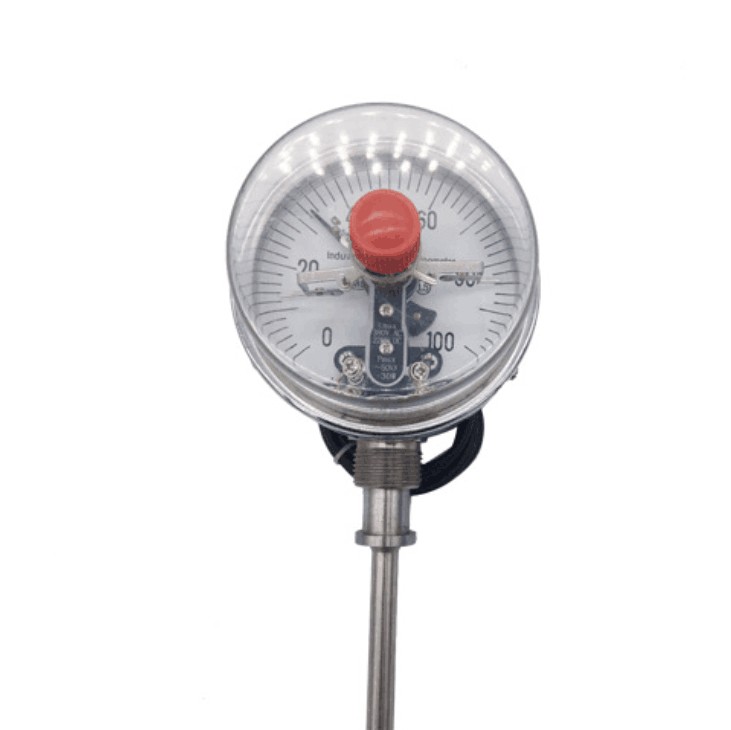

The stainless steel electric contact bimetallic thermometer dial is made of stainless steel material and is mainly used in production sites with corrosive environments or media containing food grade substances that require automatic temperature control and alarm control output. Stainless steel electric contact bimetallic thermometer can directly measure the temperature of liquid, steam, and gas media within the range of -80 to 500 ℃ in various production processes.
1、 Characteristics
·The shell material is made of stainless steel, which can resist environmental corrosion
·On site temperature display, intuitive and convenient;
·Equipped with automatic power-off and alarm functions;
·Safe and reliable, with a long service life;
·Multiple structural forms can meet different requirements.
2、 Working principle
Stainless steel electric contact bimetallic thermometer uses temperature changes to drive contact changes. When it is connected to the upper and lower limit contacts or disconnected, the relay in the circuit is activated to automatically control and alarm.
3、 Main technical parameters
·Product execution standards: JB/T8803-1998 GB3836-83
·Scale dial nominal diameter: 100
·Accuracy level: 1.5（1.0）
·Thermal response time: ≤ 40S
·Protection level: IP55
·Normal working atmospheric conditions: temperature -25~+55 ℃, relative humidity ≤ 85%
·Setpoint error: The set point error should not exceed 1.5 times the basic error limit.
·Switching error: The switching error should not exceed 1.5 times the basic error limit.
·Switching repeatability: The limit range of switching repeatability is not greater than the basic error limit J 1/2 of the D value.

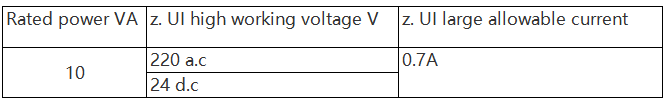

4、 Electrical parameters

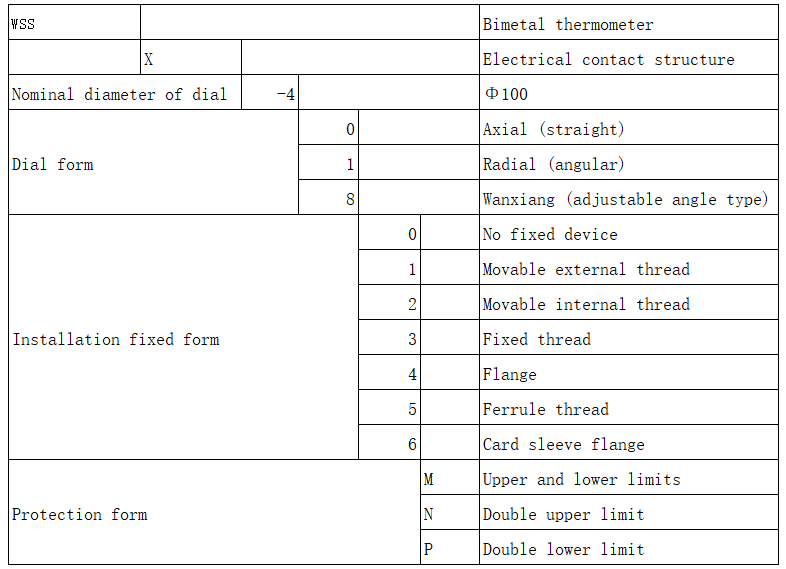

5、 Product selection
6、 Selection Notice:
Please provide the model, dial diameter, accuracy level, installation and fixing form, temperature measurement range, protective tube material, length or insertion depth.
Selection example: The on-site pipeline is made of Ø 219 * 8.5, measuring ***** gas with a temperature range of 0-100 ℃, 1.5 levels, universal threaded connection, material requirement 1Cr18Ni9Ti thermometer dial with Ø 100, equipped with alarm control, high humidity on-site environment, outdoor installation
According to the above requirements, the selection is as follows: electric contact bimetallic thermometer WSSX-481, 0-100 ℃, L=150, M27 × 2, Class 1.5
