Bimetal thermometer

Product Description:

1、 Product Overview

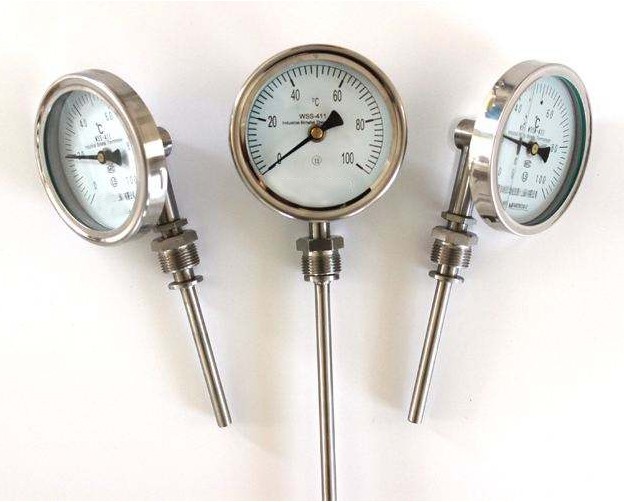

The WSS series bimetallic thermometer is an on-site detection instrument for measuring low and medium temperatures. Bimetallic thermometers can directly measure the temperature of liquid, vapor, and gas media within the range of -80 ℃ to+600 ℃ in various production processes. The structural forms of bimetallic thermometers are divided into radial, axial, and universal as shown in Figure 1, and the installation varies depending on the structure.

2、 Main features

On site temperature display, intuitive and convenient; Safe and reliable, with a long service life; Multiple structural forms can meet different requirements.

3、 Working principle

A bimetallic thermometer is composed of bimetallic sheets wound in a circular curved shape. When one end expands due to heat, it drives the pointer to rotate, and the working instrument displays the corresponding temperature value.

4、 Technical parameters

1. Scale dial nominal diameter: 60mm, 100mm, 150mm

2. Accuracy level: 1.0, 1.5

3. Thermal response time: ≤ 40S

4. Protection level: IP55

5. Angle adjustment error: The angle adjustment error should not exceed 1.0% of its range

6. Return difference: The return difference of the bimetallic thermometer should not exceed J. of the basic error limit d value

7. Repeatability: The repeatability limit range of bimetallic thermometers should not exceed the basic error limit J 1/2 of the D value

5、 Temperature measurement range

Measurement range ℃	Scope of application
Measurement range ℃	Industrial and Commercial	Laboratory、small
-80～+40	√	√
-40～+80	√	√
0～50	√	√
0～100	√	√
0～200	√	√
0～300	√	√
0～400	√	√
0～500	√	√
0～600	√	√

6、 External dimensions

Form	A	B	C	E	L	d
Axial type	65	23	73	-	75 100 150 200 300 400 500 750 1000	Φ6 Φ8 Φ10
	105	23	73	-
	155	23	73	-
RADIAL	65	50	110	34
	105	50	110	34
	105	50	110	34
135 ° oriented	105	23	85	-
135 ° oriented	155	23	85	-
Universal type	105	23	178	120
Universal type	155	23	178	120

7、 Selection code

Serial number	WSS					Bimetal thermometer
Nominal diameter of dial		-3				Φ60
		-4				Φ100
		-5				Φ150
Dial form			0			Axial (straight)
			1			Radial (angular)
			2			135 ° direction (obtuse angle type)
			8			Wanxiang (adjustable angle type)
Installation fixed form				0		No fixed device
				1		Movable external thread
				2		Movable internal thread
				3		Fixed thread
				4		Flange
				5		Ferrule thread
				6		Card sleeve flange
Protection form					-	Common
					W	Protective type
					F	Anticorrosive type

8、 Model and specifications

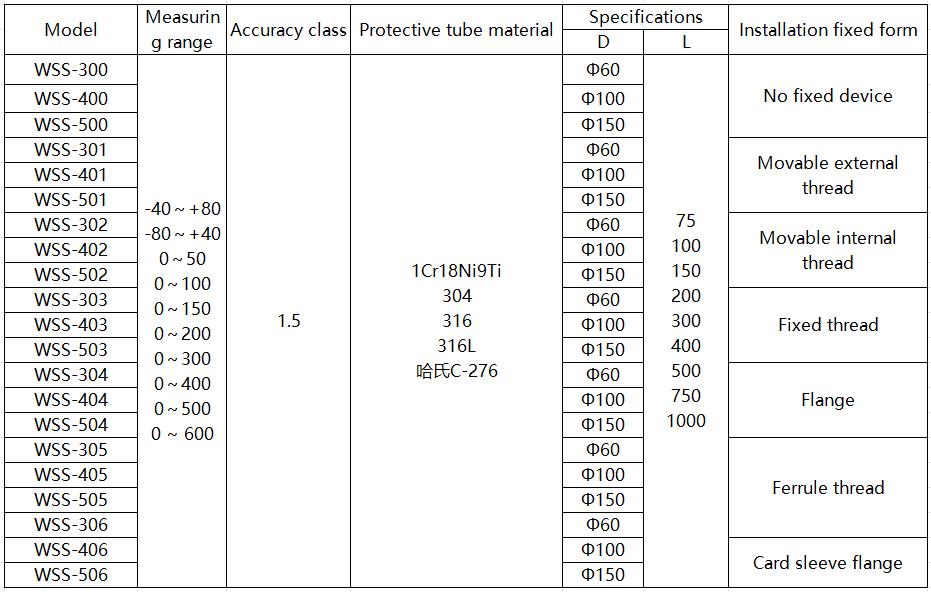

Axial bimetallic thermometer

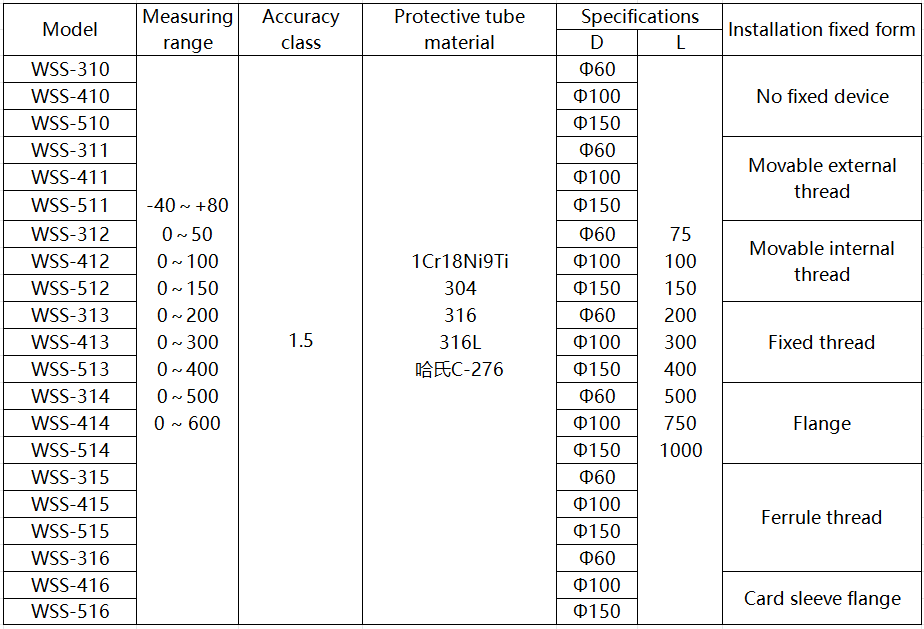

Radial bimetallic thermometer

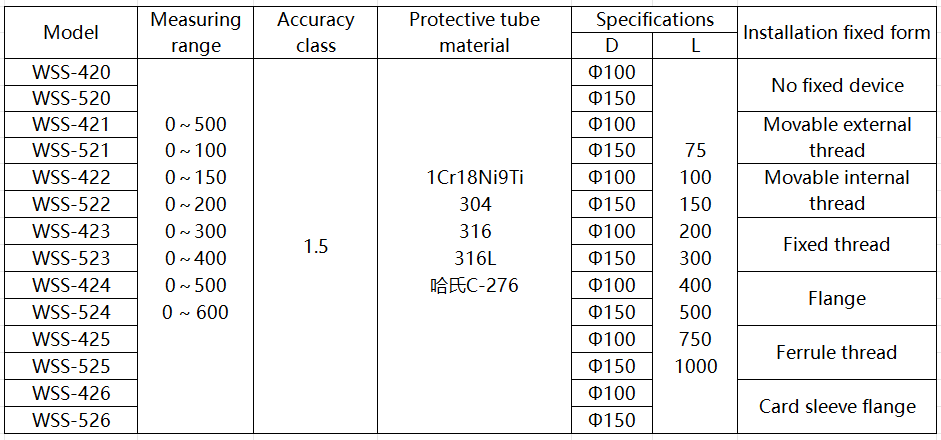

Universal bimetallic thermometer

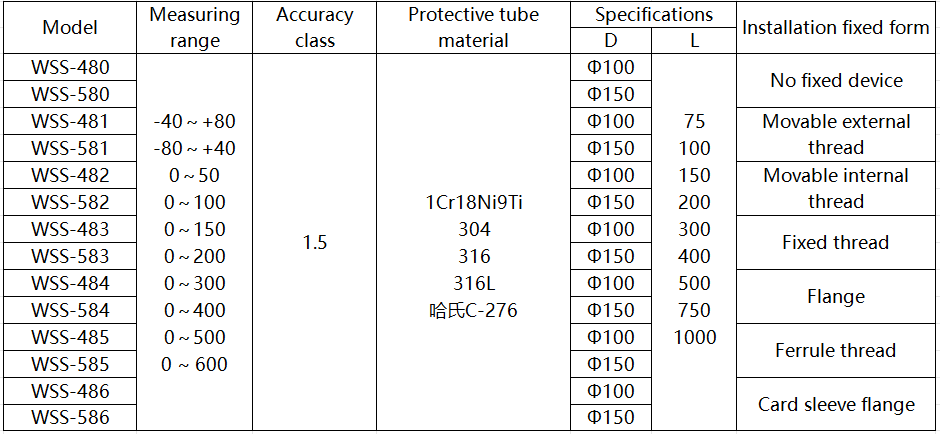

135 ° directional bimetallic thermometer

remarks:

Selection notice: Please provide the model, dial diameter, accuracy level, installation and fixing form, temperature measurement range, protective tube material, length or insertion depth. Example of selection: Universal bimetallic thermometer, dial diameter Φ 100, temperature measurement range 0-400 ℃, 1.5 levels, movable external thread M27 × 2, length 450mm WSS-481, 0-400 ℃, L=450, M27 × 2, Class 1.5
