Product Description:

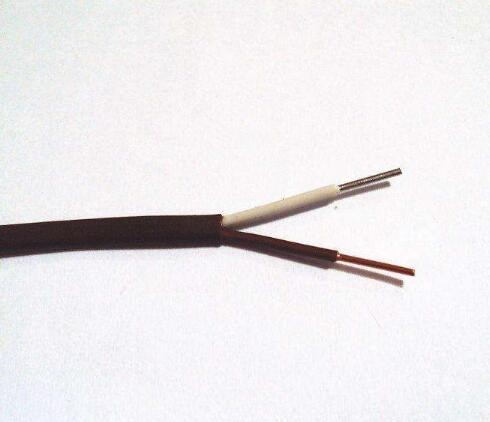

T-shaped compensating wire
This product is suitable for electrical connection between various thermocouples with scale marks of S, R, K, E, T, J, N and temperature display instruments to improve temperature measurement accuracy. Compensation wires are divided into extension and compensation types.
Compensation wires are classified into precision grade (symbol S) and ordinary grade (symbol none) according to the allowable deviation of thermoelectric characteristics.
Compensation wire product usage characteristics: Compensation wire can work in an environment of -60~260 ℃, making it an ideal automation unit. It has been widely used for single or multi-point connection of automated temperature measuring instruments in sectors such as petroleum, chemical, metallurgy, and power.
Product standard: Compensation wire: GB/T4989-94：Q/ 3 20831SQL07-96
Usage characteristics: Usage temperature: Heat resistance level: -65~200 ℃ and -65~260 ℃;
Ordinary level: two types: -40~70 ℃ and -40~105 ℃;
Bending radius: compensation wire: not less than 8 times the outer diameter of the wire;
Product standard: Thermocouple compensation wire: GB/T4989-94
Thermocouple compensation cable: Q/3 20831SQL07-96 Usage characteristics: Operating temperature: Heat resistance level: -65~200 ℃ and -65~260 ℃;
Ordinary level: two types: -40~70 ℃ and -40~105 ℃;
Bending radius: compensation wire: not less than 8 times the outer diameter of the wire;
Compensation cable: not less than 12 times the outer diameter of the cable when armored, and not less than 6 times the outer diameter of the cable when unarmored
