Product Description:
1、 Product Overview

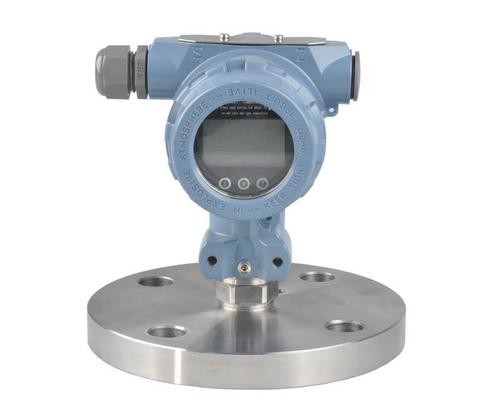

The flange type pressure transmitter adopts flange 304 stainless steel, with an isolated explosion-proof design for the housing and a digital display head for on-site display. The circuit is intrinsically safe and explosion-proof, with signal isolation amplification, cutoff interference design (strong anti-interference ability, lightning protection), overvoltage protection, current limiting protection, impact resistance, anti-corrosion, compact and convenient. 316 stainless steel fully sealed welding, with a compact and compact structure, good moisture resistance, and excellent medium compatibility.
2、 Technical parameters
Explosion proof type: intrinsic safety explosion-proof isolation explosion-proof
Range:- 0.1~0~0.001~100MPa (intermediate range optional)
Comprehensive accuracy: 0.1% FS/0.2% FS
Pressure types: negative pressure, absolute pressure, gauge pressure, sealing pressure (absolute pressure plus 140)
Measurement medium: gas liquid
Output signal: 4-20mA or 0-5VDC or 0-10VDC or 1-5VDC
Supply voltage: 12-36VDC
Medium temperature:- 40～85℃
Environmental temperature: normal temperature -40~85 ℃
Zero temperature drift: ± 0.01% FS/℃
Range temperature drift: ± 0.01% FS/℃
Compensation temperature: 0~70 ℃
Safe overload: 150% FS
Extreme overload: 200% FS
Protection level: IP65
Sampling frequency: ≤ 2ms
Stability performance: ± 0.1% FS
