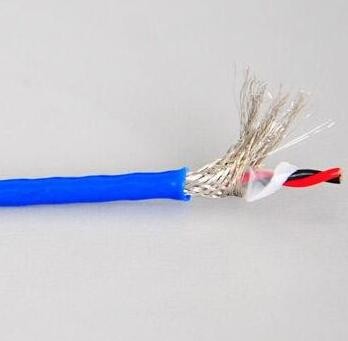

Intrinsically safe high-temperature compensation cable

Product Description:

1、 Characteristics and Applications of Intrinsic Safety High Temperature Compensation Cable Products

The compensating cable for thermocouple in intrinsic safety explosion-proof temperature measurement system is a cable composed of multiple pairs of compensating wires for intrinsic safety explosion-proof temperature measurement system. In addition to the performance of other compensating cables, it also has explosion-proof safety performance. Suitable for environments with explosive hazards and high requirements for explosion-proof safety performance, extending the explosion-proof thermocouple cold end to connect with explosion-proof temperature measuring instruments to form an intrinsic safety explosion-proof temperature measurement system.

2、 Execution standards

This product complies with the equivalent of GB/4989-94 and adopts the IEC584-3 standard

Flame retardant properties comply with the requirements of GB12666-5 (IEC332-3)

3、 Characteristics of using intrinsically safe high-temperature compensation cables

1. Operating temperature: heat-resistant grade: 180 ℃, ordinary grade: 70 ℃ and 105 ℃;

2. Low ambient temperature:

Fluoroplastic insulation flame-retardant polyvinyl chloride sheath:

Fixed installation: -40 ℃, non fixed installation -15 ℃;

Fluoroplastic insulated silicone rubber sheath:

Fixed installation: -60 ℃, non fixed installation -20 ℃;

3. Cable installation and laying temperature: flame retardant polyvinyl chloride sheath not less than 0 ℃, silicone rubber sheath not less than -25 ℃;

4. Allowable bending radius: Copper tape shielded wrapped cables shall not be less than 12 times the outer diameter of the cable, and other cables shall not be less than 6 times the outer diameter of the cable.

4、 Product model and name of intrinsically safe high-temperature compensation cable

Model	Product Name
ZR-ia-KX-GSVPVP	Flame retardant polyvinyl chloride insulated and sheathed precision grade single stranded conductor copper wire braided split screen, total screen, intrinsically safe compensation cable for K-index thermocouple
ZR-ia-KX-GSVPVRP	Flame retardant polyvinyl chloride insulated and sheathed precision grade multi strand conductor copper wire braided split screen and total screen, intrinsically safe compensating flexible cable for K-index thermocouple
ZR-ia-KX-GSVPLVPL	Flame retardant polyvinyl chloride insulated and sheathed precision grade single stranded conductor aluminum-plastic composite tape wrapped for sub screen and main screen, intrinsically safe compensation cable for K-index thermocouple
ZR-ia-KX-GSVPLVRPL	Flame retardant polyvinyl chloride insulation and sheath precision grade multi strand conductor aluminum-plastic composite tape wrapped for sub screen and main screen, intrinsically safe compensating flexible cable for K-index thermocouple
ZR-ia-KX-GSVP2VP2	Flame retardant polyvinyl chloride insulation and sheath precision grade single stranded conductor copper plastic composite tape wrapped for sub screen and total screen, intrinsically safe compensation cable for K-index thermocouple
ZR-ia-KX-GSVP2VRP2	Flame retardant polyvinyl chloride insulation and sheath precision grade single stranded conductor copper plastic composite tape wrapped around sub screen and main screen, intrinsically safe compensating flexible cable for K-index thermocouple
ZR-ia-KX-GSFPVP	Fluoroplastic insulated flame-retardant polyethylene sheath precision grade single stranded conductor copper wire braided split screen, total screen, K division thermocouple intrinsic safety compensation cable
ZR-ia-KX-GSFPVRP	Fluoroplastic insulated flame-retardant polyethylene sheath precision grade multi strand conductor copper wire braided split screen, total screen, K division thermocouple with intrinsic safety compensation flexible cable
ZR-ia-KX-GSFPVPLVPL	Fluoroplastic insulated flame-retardant polyethylene sheath precision grade multi strand conductor aluminum-plastic composite tape wrapped with sub screen and total screen, intrinsically safe compensation cable for K-index thermocouple
ZR-ia-KX-GSFPVPLVRPL	Fluoroplastic insulated flame-retardant polyethylene sheath precision grade multi strand conductor aluminum-plastic composite tape wrapped with sub screen and total screen, intrinsically safe compensating flexible cable for K-index thermocouple
ZR-ia-KX-GSFP2VP2	Fluoroplastic insulation, flame-retardant polyvinyl chloride sheath, precision grade single stranded conductor, aluminum-plastic composite tape wrapped, divided screen, total screen, intrinsically safe compensation cable for K-index thermocouple
ZR-ia-KX-GSFP2VRP2	Fluoroplastic insulation, flame-retardant polyvinyl chloride sheath, precision grade single stranded conductor, aluminum-plastic composite tape, wrapped and divided screen, total screen, intrinsically safe compensating flexible cable for K-index thermocouple
ia-KX-HSFPGP	Fluoroplastic insulated silicone rubber sheathed precision grade single stranded conductor copper wire braided split screen, total screen, K division thermocouple with intrinsic safety compensation cable
ia-KX-HSFPGRP	Fluoroplastic insulated silicone rubber sheathed precision grade multi strand conductor copper wire braided split screen, total screen, K division thermocouple with intrinsic safety compensation flexible cable
ia-KX-IMHSFPGP	Imported fluoroplastic insulated silicone rubber sheathed precision grade single stranded conductor copper wire braided split screen, total screen, K division thermocouple with intrinsic safety compensation cable
ia-KX-IMHSFPGRP	Imported fluoroplastic insulated silicone rubber sheathed precision grade single stranded conductor copper wire braided split screen, total screen, K division thermocouple with intrinsic safety compensation flexible cable
