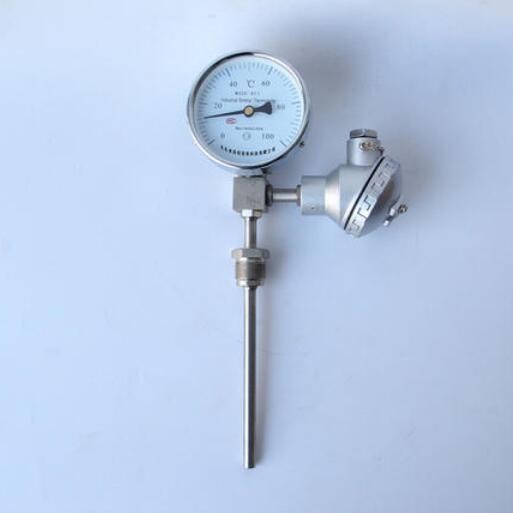

Seismic resistant remote transmission bimetallic thermometer

The seismic resistant remote transmission bimetallic thermometer can meet both on-site temperature measurement needs and long-distance signal transmission needs (remote transmission signals include Pt100 signals, K-type thermocouples, E-type thermocouples, and 4-20mA current signal output). The seismic resistant remote transmission bimetallic thermometer can directly measure the temperature of liquid, vapor, gas media, and solid surfaces within the range of -80 to+500 ℃ during various production processes. This seismic remote transmission bimetallic thermometer has the characteristics of waterproof, corrosion-resistant, vibration resistant, intuitive reading, signal remote transmission, no harm, and durability in terms of design principles and structure. It is widely used in industries and scientific research departments such as petroleum, chemical, machinery, shipbuilding, power generation, textile, printing and dyeing.

Performance:

1. It has the characteristics of small temperature probe, high sensitivity, linear scale, and long service life.

2. It has multiple functions such as remote transmission output signal and high-power switch signal

3. The structural form is the same as that of international ***** products and can replace imports.

4. Seismic resistant (filled with silicone oil inside the dial to achieve shock resistance)

5. There are a complete range of integrated types including axial, radial, and universal, which are suitable for various on-site installation needs.

6. The dial material is stainless steel 304, and the sensor material is 304, 316. Stainless steel+PTFE is corrosion-resistant

Execution standards

JB/T8803-1998 GB3836-83

Technical parameters:

1. Dial diameter: Ф100 Ф150

2. Temperature measurement range: -80~500 ℃

3. Environmental temperature:- 10～55℃

4. Relative humidity: ≤ 95%

5. Accuracy level: dial accuracy level 1.5 (remote transmission signal Pt100 is level A, thermocouple is level II, 4-20mA signal is 0.5%)

6. Time constant: ≤ 60S

7. Probe withstand voltage: ≤ 6Mpa

8. Probe diameter: φ8-10mm

9. Installation method:

Thread: (Size according to user requirements, conventional is movable external thread M27 * 2)

Flange: According to user requirements, the standard is DN25 PN1.6

10. Output signal: Thermistor PT100 (single or dual output) thermocouple K-type, E-type or 4-20mA current output

11. Protection level: IP55
