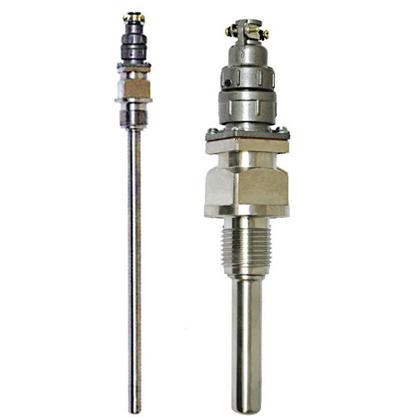

Socket type thermistor

Product Description:

1. Application

The socket type thermistor adopts a plug-in form, which is easy to install. Suitable for measuring temperature of liquid, gas, and solid surfaces within the range of -200 to+450 ℃.

2. Main technical parameters

Accuracy level: A、B

Protection level: IP65

Nominal pressure: atmospheric pressure

3. Model and specifications

Model	Graduation	Temperature measurement range ℃	Thermal response time	Protective tube material	Specifications
WZP-260	Pt100	0-100	＜ 30S	1Cr18Ni9Ti	100
					150
					200
WZP 2 -260			＜ 45S		250
WZP-267M	Pt100	-200	＜ 30S		300
WZP-269	Pt100	-500	＜ 30S		75
					100
					150
WZP 2 -269			＜ 45S		200
WZC-269	Cu50	-150	＜ 120S		250
WZP-270	Pt100	-620	＜ 15S		50
					75
					100
WZC-270	Cu50	-200	＜ 45S		150
WZP-280	Pt100	-500	＜ 30S		200
