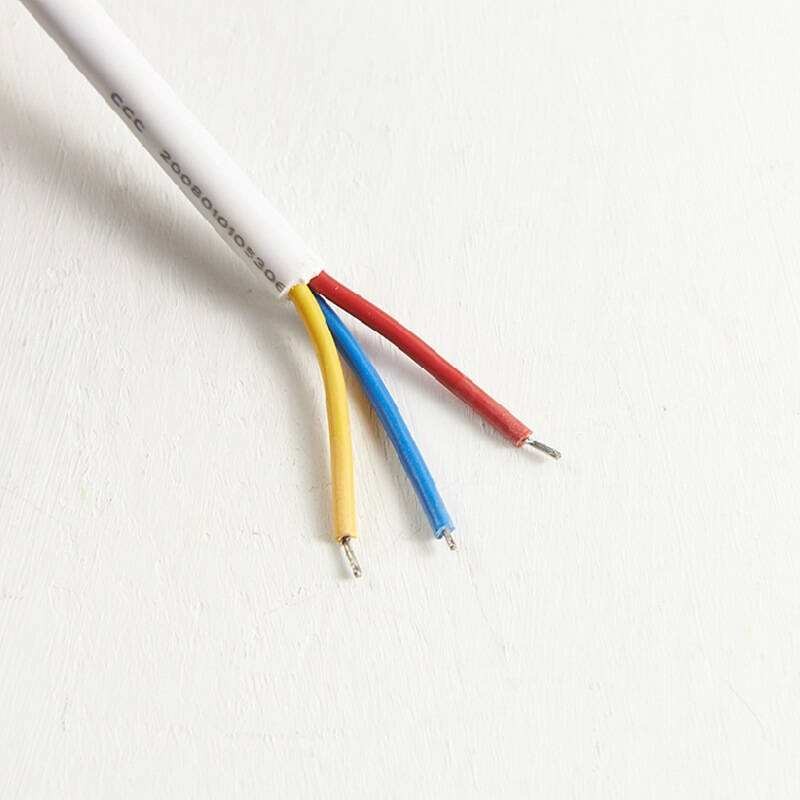

Product Description:
1、 CS compensation cable execution standard: GB/T4989-1994
2、 Characteristics of CS compensation cable products:
1. Rated voltage: No requirements
2. Working temperature:- 25～+200℃
3. Conductor: Solid core or twisted alloy wire
4. Insulation: polyvinyl chloride/polytetrafluoroethylene
5. Sheath: polyvinyl chloride/polytetrafluoroethylene/alkali free glass fiber
6. Shielding: Tin plated copper wire or galvanized steel wire or aluminum-plastic composite tape
7. Color: Red/Yellow/Blue/White/Black/Grey/Brown, etc
3、 CS compensation cable product features/uses:
Compensation wires for thermocouples are a pair of insulated wires with the same nominal value of thermoelectric potential as the matched thermocouple within a certain temperature range (including room temperature). They are used to connect thermocouples and measuring devices to compensate for errors caused by temperature changes at their connection points. It is divided into two types: extension type and compensation type.
4、 Delivery requirements:
According to the contract agreement between both parties, short delivery of no less than 10 meters is allowed. The quantity should not exceed 10% of the total delivery length.
