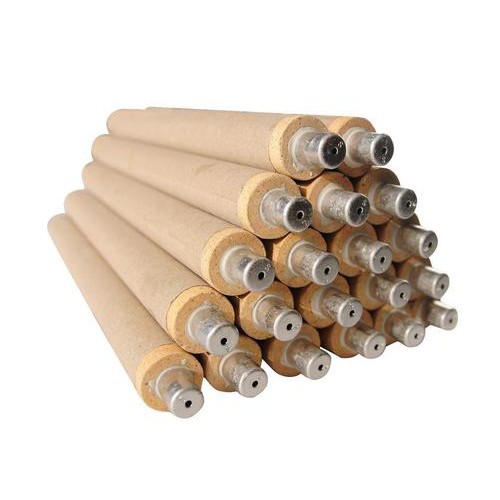

The fast thermocouple product has high accuracy, wide temperature measurement range, and low price, and meets the standards of YB4084-92 and YB/T163-1999 for rapid measurement of metal melt temperature thermocouples. Fast thermocouples belong to consumable thermocouples, mainly used for rapid temperature measurement of molten steel. We can provide consumable thermocouples of various lengths, types, and slag caps according to the different needs of our customers.
Technical parameters of fast thermocouple:
| Name | Model | Measuring range | Accuracy (% t) | insulation resistance |
| Tungsten Rhenium 3-Tungsten Rhenium 25 | KW-602(D-type) | 0-2000℃ | ≤±0.25 | ≥5MΩ |
| Tungsten Rhenium 5-Tungsten Rhenium 26 | KW-602(D-type) | 0-2000℃ | ≤±0.25 | ≥5MΩ |
Quick Thermocouple Product Introduction:
1 KS/KB/KR-602
Platinum rhodium consumable temperature measuring thermocouple, with stable and excellent quality, is not only widely used in major steel mills in China, but also exported in large quantities to European and American countries every year.
Reference standard:
1. B/T 163-1999<Thermocouples for rapid measurement of metal melt temperature using consumable methods>.
2. GB/T3772-98 (S-type), GB/T1598-98 (R-type), GB/T2902-98 (B-type), etc.<Thermocouple Wires and Scale Table>.
3.GB/T4989-94＜S. R-type thermocouple compensation wire>.
Quick thermocouple model and technical parameters:
| Product | Graduation | Model | Temperature upper limit for use | Tolerance |
| Platinum rhodium 10 platinum | S | KS-602/604 | 1650℃ | ≤±5℃ |
| Platinum rhodium 13 platinum | R | KR-602/604 | 1650℃ | ≤±5℃ |
| Platinum rhodium 30- Platinum rhodium 6 | B | KB-602/604 | 1800℃ | ≤±5℃ |
| Specification: Product length：300、600、900、1000、1200mm。 | ||
| 1. Type: PtRh10%/Pt, S-type | 1. Type: PtRh30%/PtRh6%, Type B | 1. Type: PtRh13%/Pt, R-type |
| 2. Model: KS-602 | 2. Model: KB-602 | 2. Model: KR-602 |
| 3. z.ui high temperature: 1650 ℃ | 3. z.ui high temperature: 1800 ℃ | 3. z.ui high temperature: 1650 ℃ |
| 4. Allowable deviation: ≤ ± 5 ℃ | 4. Allowable deviation: ≤ ± 5 ℃ | 4. Allowable deviation: ≤ ± 5 ℃ |
2 KW3/25-602
The product has passed ISO-9002 quality system certification and national quality management standard enterprise certification The product has high precision, wide temperature measurement range, low price, and meets the standards of YB4084-92 and YB/T163-1999 for rapid measurement of metal melt temperature thermocouples
Technical parameters of fast thermocouple
| Name | Model | Measuring range | Accuracy (℅ t) | Loop resistance | Insulation resistance |
| Tungsten Rhenium 3-Tungsten Rhenium 25 | KW-602 | 0-2000℃ | ≤±0.25 | <3Ω | ≥5MΩ |
Specifications:
1. Type: WRe3%/WRe25%, KW3/25 type
2. Model: KW3/25-602
3. z.ui high temperature: 2000 ℃
4. Allowable deviation: ≤± 5 ℃
