Product Description:

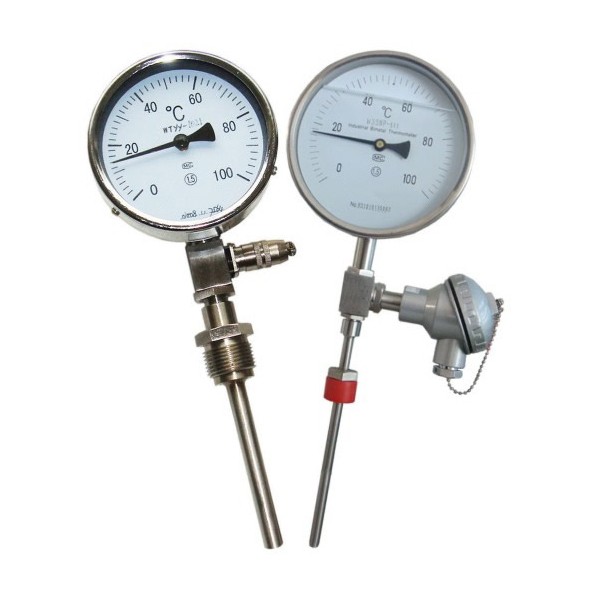

The WTYY-1021 remote transmission bimetallic thermometer meets both on-site temperature measurement requirements and long-distance transmission needs. The remote transmission bimetallic thermometer can directly measure the temperature of liquid, vapor, gas media, and solid surfaces within the range of -40 to+600 ℃ in various production processes.
Performance:
1. It has the characteristics of small temperature probe, high sensitivity, linear scale, and long service life.
2. It has multiple functions such as remote output resistance signal (PT100), earthquake resistance, corrosion resistance, and high-power switch signal.
3. The structural form is the same as that of international ***** products and can replace imports.
Technical parameters:
1. Temperature measurement range -40~600 ℃
2. Environmental temperature -10~55 ℃
3. Relative humidity ≤ 95%
4. Accuracy level 1.5
5. Time constant ≤ 60S
6. Probe withstand voltage ≤ 6Mpa
7. Probe diameter: φ8-10mm、 Movable external thread: M27*2
8. Thermal resistance PT100 (single or dual output) or 4-20mA current output
9. Protection level: IP55
