Product Description:
1. Application

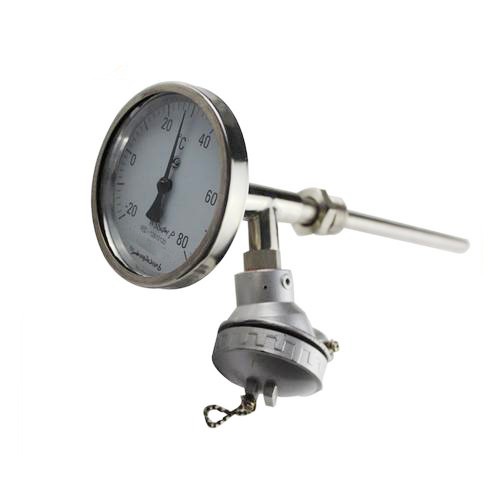

The bimetallic thermometer with thermocouple/thermal resistance adopts the integration of bimetallic thermometer and thermocouple/thermal resistance, which not only meets the on-site temperature measurement needs, but also meets the long-distance transmission needs. It can directly measure the temperature of liquid, vapor, gas media and solid surfaces within the range of -80-+500 ℃ in various production processes.
2. Main technical parameters
Scale dial nominal diameter: 100, 150
Thermal response time: ≤ 40s
Accuracy level: 1.0, 1.5
Thermocouple: Class I 1.5 ℃; Grade II 2.5 ℃
Thermal resistance: Class A ± (0.15+0.005ItI) Class B ± (0.30+0.005)
Protection level: IP55

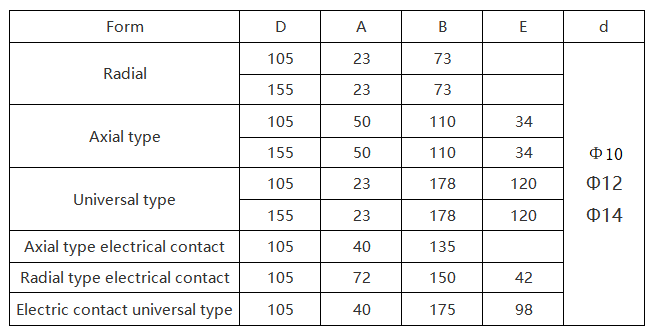

3. Appearance and dimensions

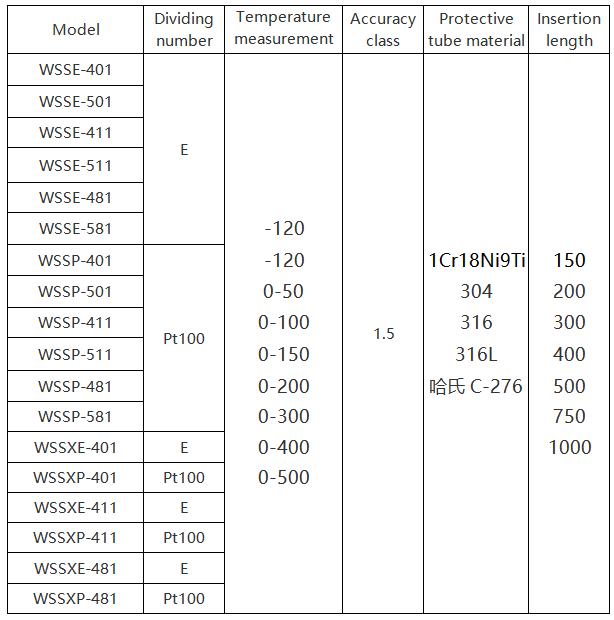

4. Model and specifications
Note: Thermocouples of Class I and thermal resistors of Class A are ordered according to the agreement;
Order the remaining materials of the protective tube according to the agreement
5. Selection Notice
Model A
B thermocouple/thermal resistance index number
Accuracy level of thermocouple/thermal resistance
Accuracy level of bimetallic thermometer
E Temperature measurement range
F installation fixed form
Material of protective tube g
Insert length h
Example A: Thermocouple bimetallic thermometer, axial type, E-type, Class I temperature measurement range 0-400 ℃. Active thread M27x2, protective tube 316 insertion length 300mm Namely: WSSE-401 0-400 ℃ l=300mm Class I protection tube 316
