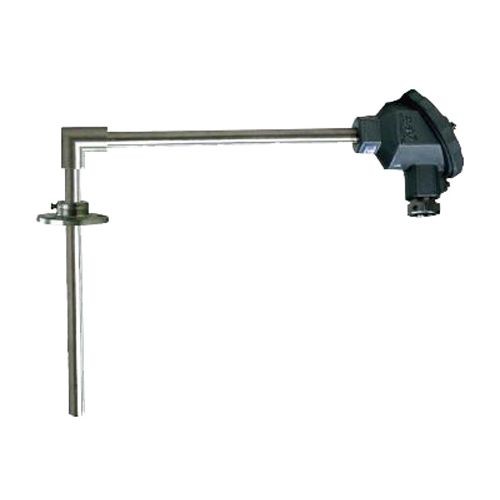

Right angled bend thermocouple

application

Our company produces right angled bend thermocouples that are suitable for production sites where high temperatures and harmful gases can affect the thermocouple junction box, or where direct horizontal and vertical installation is not appropriate.

Main technical parameters

◆ Electrical export: M20x1.5,NPT1/2

Accuracy level: I 、 II

◆ Protection level: IP65

◆ Nominal pressure: atmospheric pressure

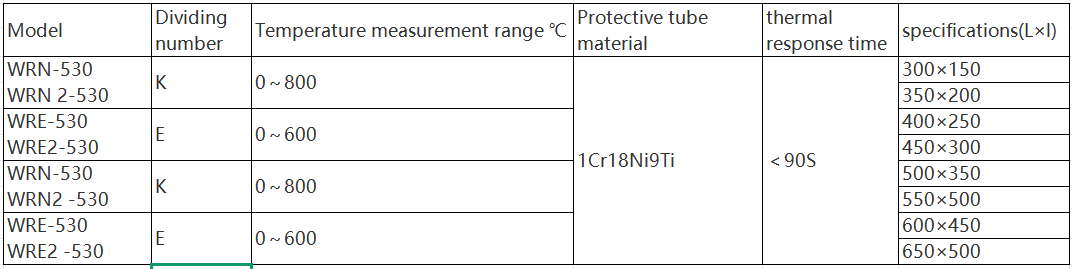

Model and specifications

Thermocouple level I is ordered according to the protocol.
