Product Description:
1、 Purpose of compensating wire and cable:
The compensating wire and cable series products are suitable for temperature control systems in energy, metallurgy, petroleum, chemical and other industrial enterprises and research departments. It is used for connecting the cold end of temperature measuring instruments and between temperature measuring instruments. The heat-resistant type adopts fluoroplastic insulation and sheath, which has excellent heat resistance, waterproof, anti-corrosion, acid and alkali resistance, chemical resistance, wear resistance, aging resistance and non combustion performance.
2、 Compensation wire and cable execution standards:
GB/T4989/94 is equivalent to IEC584.3
3、 Characteristics of using compensating wire and cable:

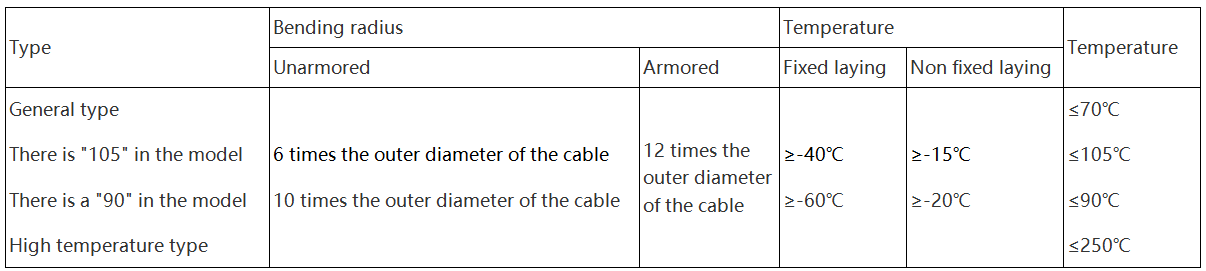

1. Characteristics of compensating cable usage

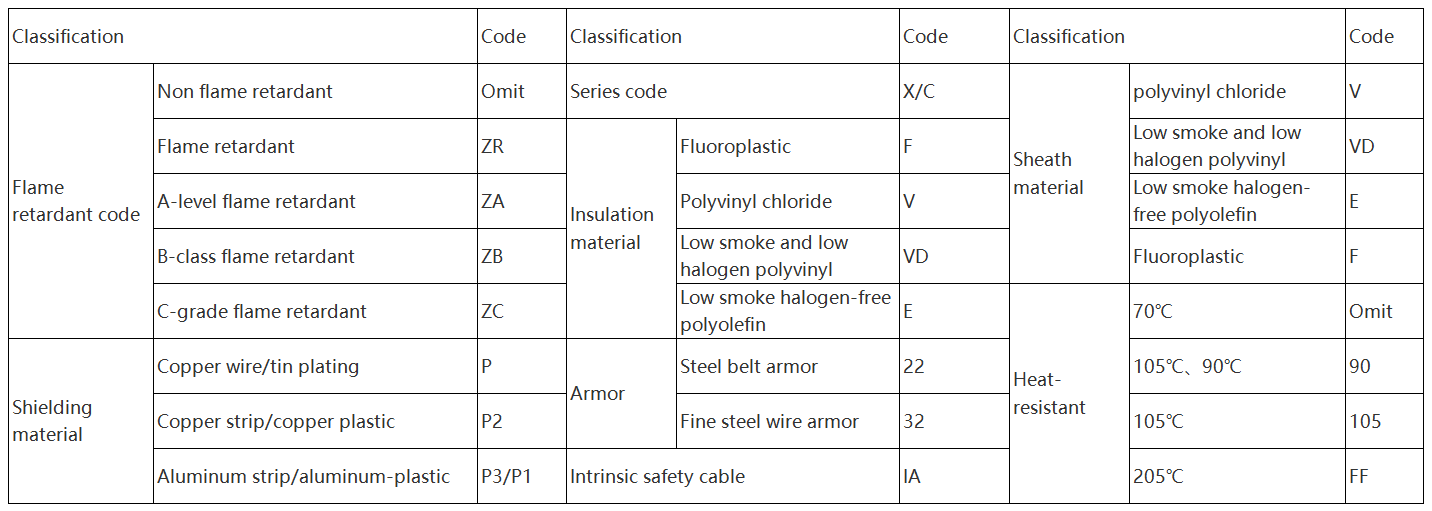

2. Product code and meaning:
4、 Technical specifications of compensating wire and cable:

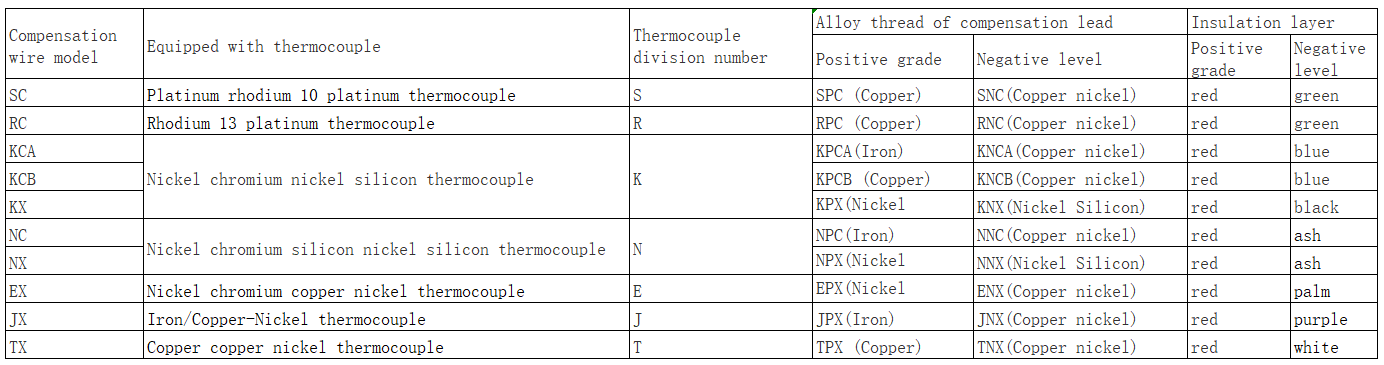

1. Model, alloy wire material, and insulation color

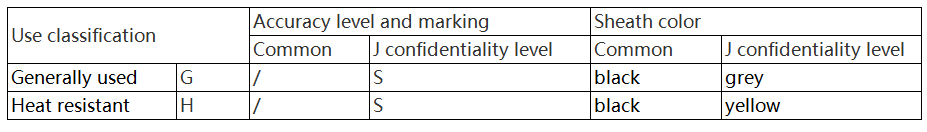

2. Use classified protective layer colors

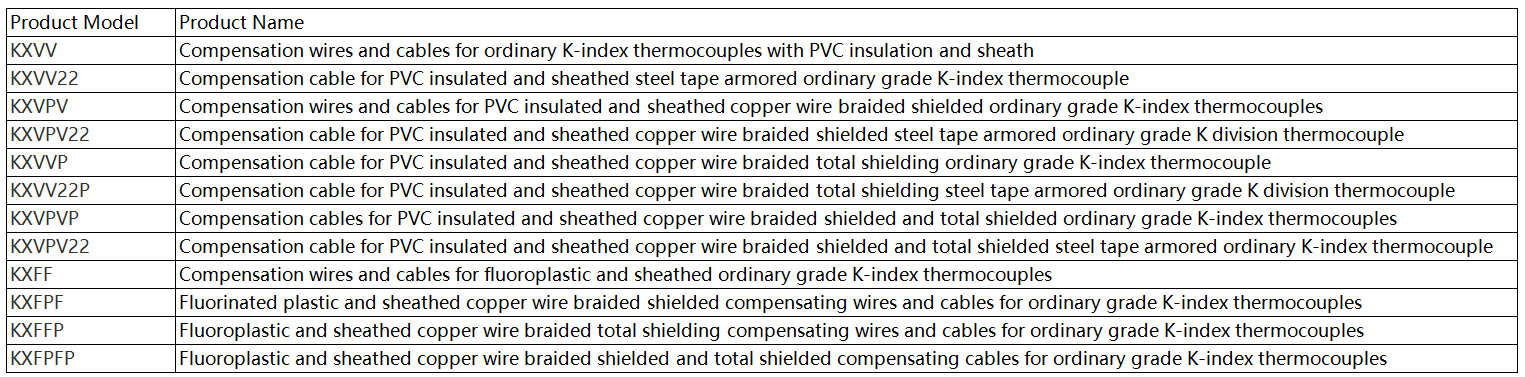

5、 Compensation wire cable model name:

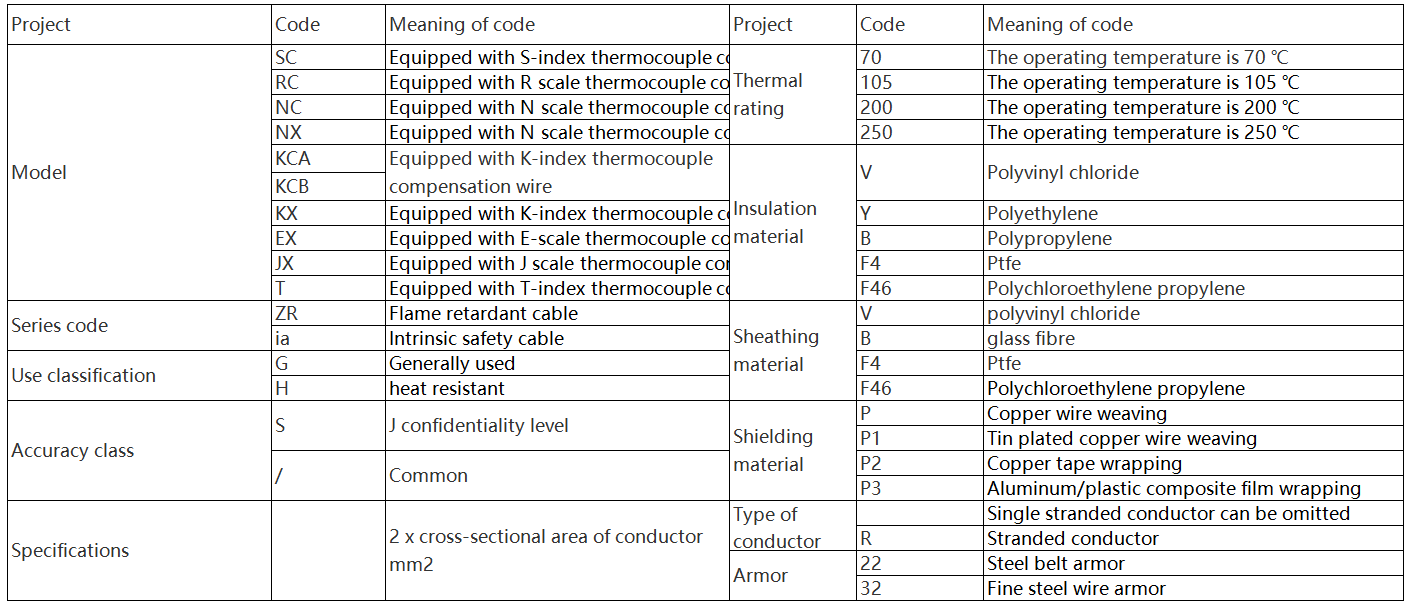

6、 Model description of compensating wire and cable:

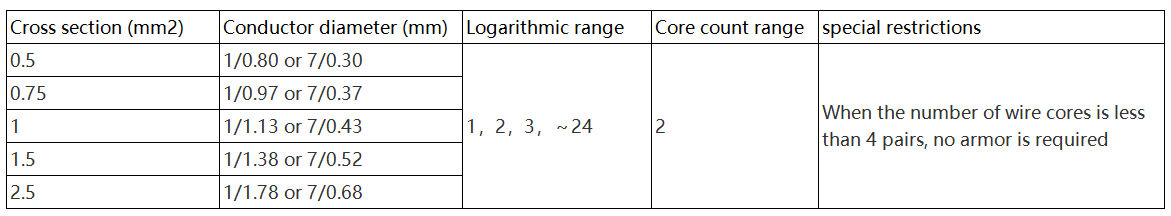

Specifications:
7、 Compensation wire and cable delivery length:
Cables should generally be no less than 100 meters long, and short lines of more than 10 meters are allowed for delivery. The quantity shall not exceed 10% of the total delivery length, and the measurement error shall be ≤± 5%. If there are special requirements, both parties can negotiate separately.
