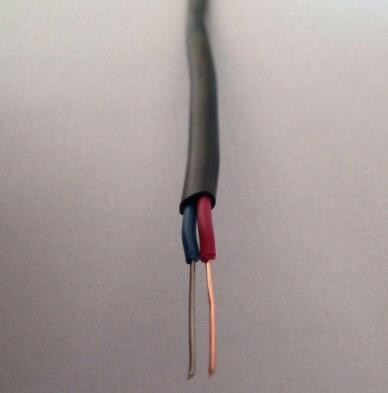

KC compensation wire

Product Description:

The compensating wire or cable used in the intrinsic safety explosion-proof temperature measurement system adopts a low capacitance and low inductance material structure, which has explosion-proof safety performance and is suitable for connecting explosion-proof thermocouples with explosion-proof temperature measuring instruments in hazardous environments, forming an intrinsic safety thermocouple temperature measurement system.

2： Product execution standards

GB/T4989-94 (equivalent to IEC584-3 standard)

3： Usage characteristics

1. Conductor maximum operating temperature: heat-resistant grade: perfluoroalkoxy (F46) 200 ℃

Soluble polytetrafluoroethylene 260 ℃

Silicone rubber at 180 ℃

Ordinary grade: polyvinyl chloride at 70 ℃ and 105 ℃, cross-linked polyethylene at 90 ℃

Low smoke halogen-free flame-retardant polyolefin at 70 ℃, cross-linked at 90 ℃ and 125 ℃

2. Low ambient temperature: PVC sheath: fixed installation -40 ℃, non fixed installation -15 ℃

Fluoroplastic insulation and sheath: fixed installation -60 ℃, non fixed installation -20 ℃

3. Allowable bending radius for cables: The minimum allowable bending radius for non armored cables is 6 times the outer diameter

Copper tape shielding or steel tape armor point cable with a minimum diameter of 12 times the outer diameter of the cable

Fluoroplastic insulation and sheath are as small as 10 times the outer diameter of the cable

4： Basic model and name KC KCP SC SCP EX EXP WC WCP KX KXP FF FFP

1: Compensation wire for thermocouple

KX-GA-VV	PVC insulated PVC sheathed J-grade K division thermocouple compensation wire
KX-GA-VVR	PVC insulated PVC sheathed J-grade K division thermocouple compensation flexible wire
KX-GA-VVP	Polyvinyl chloride insulation, polyvinyl chloride sheath, copper wire braided shield, J-grade K division thermocouple compensation wire
KX-GA-VVRP	Polyvinyl chloride insulation, polyvinyl chloride sheath, copper wire braided shield, J-grade K division thermocouple compensation flexible wire
KX-HA-FF	Fluoroplastic insulation and sheath J-grade K division thermocouple compensation wire
KX-HA-FFR	Fluoroplastic insulation and sheath J-grade K-division thermocouple compensation flexible wire
KX-HA-FFP	Fluoroplastic insulated and sheathed copper wire braided shield J-grade K division thermocouple compensation wire
KX-HA-FFRP	Fluoroplastic insulation and sheath, copper wire braided shielding, J-grade K division thermocouple compensation flexible wire
KX-HA-FG	Fluoroplastic insulated silicone rubber sheath J grade K division thermocouple compensation wire
KX-HA-FGR	Fluoroplastic insulated silicone rubber sheath J grade K division thermocouple compensation flexible wire
KX-HA-FGP	Fluoroplastic insulation, silicone rubber sheath, copper wire braided shield, J-grade K division thermocouple compensation wire
KX-HA-FGRP	Fluoroplastic insulation, silicone rubber sheath, copper wire braided shield, J-grade K division thermocouple compensation flexible wire
KX-HA-FV	Fluoroplastic insulated PVC sheathed J-grade K division thermocouple compensation wire
KX-HA-FVR	Fluoroplastic insulated PVC sheathed J-grade K division thermocouple compensation flexible wire
KX-HA-FVP	Fluoroplastic insulation, polyvinyl chloride sheath, copper wire braided shield, J-grade K division thermocouple compensation wire
KX-HA-FVRP	Fluoroplastic insulation, polyvinyl chloride sheath, copper wire braided shield, J-grade K division thermocouple compensation flexible wire
KX-GA-YJV	Cross linked polyethylene insulated polyvinyl chloride sheath J grade K division thermocouple compensation wire
KX-GA-YJVR	Cross linked polyethylene insulated polyvinyl chloride sheath J grade K division thermocouple compensation flexible wire
KX-GA-YJVP	Cross linked polyethylene insulation, polyvinyl chloride sheath, copper wire braided shield, J-grade K division thermocouple compensation wire
KX-GA-YJVRP	Low smoke halogen-free insulated and sheathed copper wire braided shielding J-grade K division thermocouple compensation flexible wire
KX-GA-YDYD	Low smoke halogen-free insulation and sheath J classification K division thermocouple compensation wire
KX-GA- YDYD R	Low smoke halogen-free insulation and sheath J-grade K division thermocouple compensation flexible wire
KX-GA- YDYD P	Low smoke halogen-free insulated and sheathed copper wire braided shielding J-grade K division thermocouple compensation wire
KX-GA- YDYD RP	Low smoke halogen-free insulated and sheathed copper wire braided shielding J-grade K division thermocouple compensation flexible wire
Note: The above models are only listed for KX. For other models such as SC, KC, EX, BC, TX, JX.Add ZR before the flame-retardant compensating wire model. ZR192 is made of imported PFA material and can be shielded with tin plated copper wire.

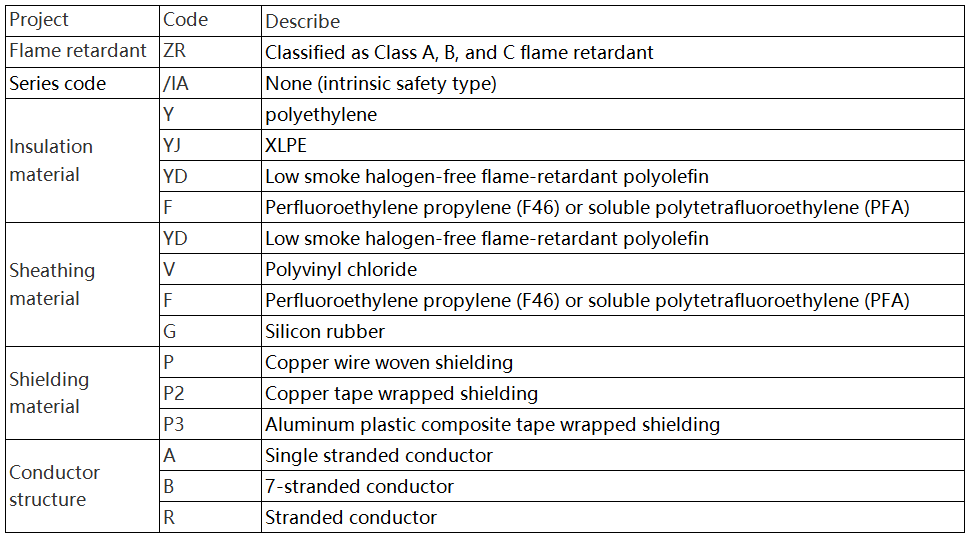

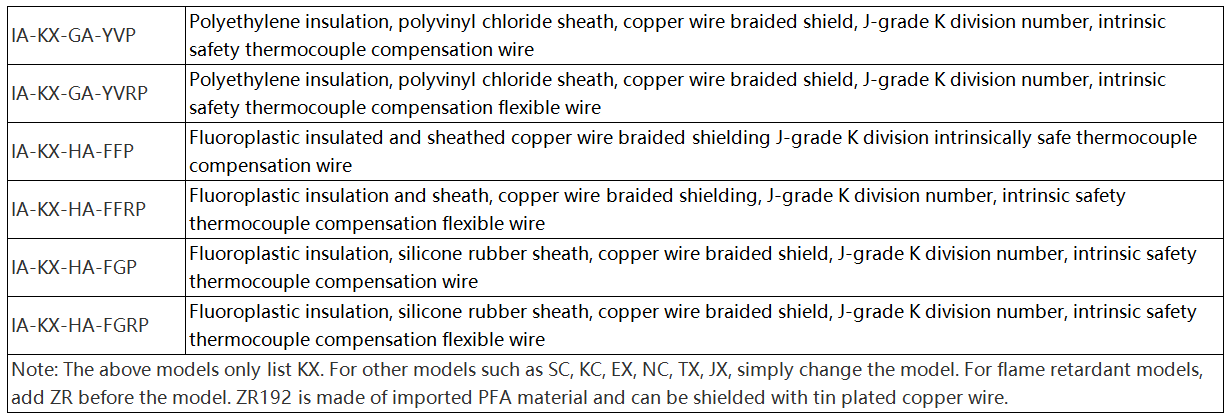

2: Compensation wire for intrinsically safe thermocouple

3: Compensation cable

KX-GA-VVP	Compensation cable for PVC insulated and sheathed copper wire braided total shielding J-grade K-index thermocouple
KX-GA-VVRP	Compensation flexible cable for PVC insulated and sheathed copper wire braided total shielding J-grade K-grade thermocouple
KX-GA-VPVP	Compensation cable for PVC insulated and sheathed copper wire braided split screen and total shielding J-grade K-index thermocouple
KX-GA-VPVRP	Compensation flexible cable for PVC insulated and sheathed copper wire braided split screen and total shielding J-grade K-index thermocouple
KX-GA-YJVP	Compensation cable for thermocouple with cross-linked polyethylene insulation, polyvinyl chloride sheath, copper wire braided total shielding, J-grade K division number
KX-GA-YJVRP	Cross linked polyethylene insulation, polyvinyl chloride sheath, copper wire braided total shielding, J-grade K division thermocouple compensation flexible cable
KX-GA-YJPVP	Cross linked polyethylene insulation, polyvinyl chloride sheath, copper wire braided split screen and total shielding, compensation cable for J-grade K-grade thermocouple
KX-GAYJPVRP	Cross linked polyethylene insulated polyvinyl chloride sheathed copper wire braided split screen and total shielding J-grade K-grade compensating flexible cable for thermocouples
KX-HA-FFP	Fluoroplastic insulation and sheath copper wire braided total shielding J-grade K-grade compensating cable for thermocouples
KX-HA-FFRP	Fluorine plastic insulated and sheathed copper wire braided total shielding J-grade K-grade compensating flexible cable for thermocouples
KX-HA-FPFP	Fluoroplastic insulated and sheathed copper wire braided split screen and total shielding compensation cable for J-grade K-grade thermocouple
KX-HA-FPFRP	Fluoroplastic insulated and sheathed copper wire braided split screen and total shielding J-grade K-index thermocouple compensating flexible cable
KX-HA-FVP	Fluoroplastic insulation polyvinyl chloride sheath copper wire braided total shielding J-grade K division thermocouple compensation cable
KX-HA-FVRP	Fluorine plastic insulated polyvinyl chloride sheathed copper wire braided total shielding J-grade K-grade compensating flexible cable for thermocouples
KX-HA-FPVP	Fluoroplastic insulated PVC sheathed copper wire braided split screen and total shielding compensation cable for J-grade K-grade thermocouple
KX-HA-FPVRP	Fluoroplastic insulated PVC sheathed copper wire braided split screen and total shielding J-grade K-grade compensating flexible cable for thermocouples
KX-HA-FGP	Fluoroplastic insulation, silicone rubber sheath, copper wire braided total shielding, J-grade K division thermocouple compensation cable
KX-HA-FGRP	Fluoroplastic insulation, silicone rubber sheath, copper wire braided total shielding, J-grade K division thermocouple compensation flexible cable
KX-HA-FPGP	Fluoroplastic insulated silicone rubber sheathed copper wire braided split screen and total shielding compensation cable for J-grade K-grade thermocouple
KX-HA-FPGRP	Fluoroplastic insulated silicone rubber sheathed copper wire braided split screen and total shielding J-grade K-grade compensating flexible cable for thermocouples
Note: The above basic models only list copper wire or tin plated wire shielding methods. For other shielding types and models, simply change the shielding code, such as P2 P3
Add ZR before the model for flame retardant type 2 and 22 after the armored cable model. ZR192 is made of imported PFA material with a temperature resistance of 260 ℃

4: Intrinsically safe compensating cable

IA-KX-GA-FPVP	Fluoroplastic insulated PVC sheathed copper wire braided split screen and total shielding J-grade K division number intrinsically safe thermocouple compensating cable
IA-KX-GA-FPVRP	Fluoroplastic insulated PVC sheathed copper wire braided split screen and total shielding J-grade K division number compensating flexible cable for intrinsic safety thermocouples
IA-KX-HA-FPFP	Fluorine plastic insulated and sheathed copper wire braided split screen and total shielding J-grade K-division intrinsically safe thermocouple compensating cable
IA-KX-HA-FPFRP	Fluorine plastic insulated and sheathed copper wire braided split screen and total shielding J-grade K-division intrinsically safe thermocouple compensating flexible cable
IA-KX-HA-FPGP	Fluoroplastic insulated silicone rubber sheathed copper wire braided split screen and total shielding J-grade K-division intrinsically safe thermocouple compensating cable
IA-KX-HA-FPGRP	Fluoroplastic insulated silicone rubber sheathed copper wire braided split screen and total shielding J-grade K-division intrinsically safe thermocouple compensating flexible cable
Note: The above basic models only list copper wire or tin plated wire shielding methods. For other shielding types and models, simply change the shielding code, such as P2 P3
Add ZR before the model for flame retardant type 2 and 22 after the armored cable model. ZR192 is made of imported PFA material with a temperature resistance of 260 ℃
