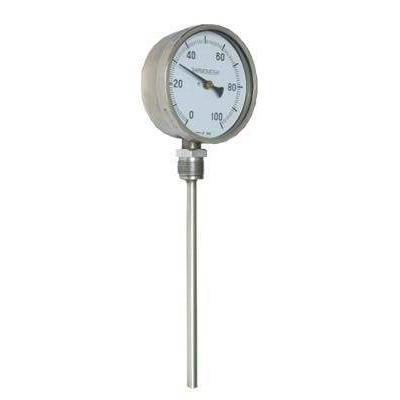

Hot set bimetallic thermometer

1、 Instrument Overview:

A hot set bimetallic thermometer is a field detection instrument suitable for measuring medium and low temperatures, which can be used to directly measure the temperature of gases, liquids, and vapors. This thermometer has the characteristics of waterproof, corrosion-resistant, explosion-proof, vibration resistant, intuitive, easy to read, harmless, sturdy and durable in terms of design principles and structure. Can replace other measuring instruments.

2、 Measurement principle:

It works by utilizing the principle that two different metals expand differently when the temperature changes. The main component of industrial bimetallic thermometers is a multi-layer metal sheet composed of two or more metal sheets stacked together. To improve the temperature sensitivity of bimetallic thermometers, the metal sheet is usually made into a spiral coil shape. When the temperature of multi-layer metal sheets changes, the expansion or contraction of each layer of metal is uneven, causing the spiral coil to roll up or loosen. Due to one end of the spiral coil being fixed and the other end being connected to a freely rotatable pointer, when the bimetallic strip senses a temperature change, the pointer can indicate the temperature on a circular scale.

3、 Applicable occasions:

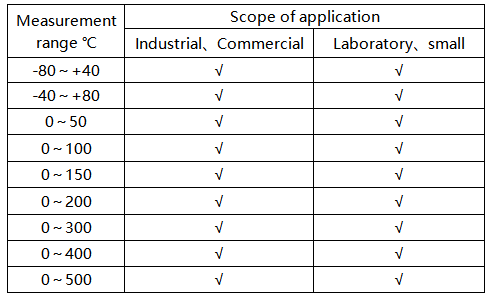

Can be used with various installation sleeves to meet different pressure level requirements. It can directly measure the temperature of liquid, steam, gas media and solid surfaces within the range of -80-+500 ℃ in various production processes.

4、 Performance characteristics:

1. On site temperature display, intuitive and convenient, safe and reliable, with long service life and other characteristics.

2. No harm, easy to read, sturdy and shock resistant.

3. The protective pipe material is 1Gr18Ni9Ti stainless steel and molybdenum titanium, with strong pressure resistance and anti-corrosion ability.

4. The core pulling thermometer can be maintained or replaced for a short period of time without stopping the machine.

5、 Technical indicators:

Execution standards

JB/T8803-1998 GB3836-83。

Other

Scale dial nominal diameter: 60100150;

Accuracy level: （1.0），1.5；

Thermal response time: ≤ 40S；

Protection level: IP55；

Angle adjustment error: The angle adjustment error should not exceed 1.0% of its range;

Return difference: The return difference of the bimetallic thermometer should not exceed the * value of the basic error limit;

Repeatability: The repeatability limit range of bimetallic thermometers should not exceed 1/2 of the basic error limit * value.

6、 Precautions

1. Cannot directly twist the header;

2. Choose a length that is close to the standard size (an integer multiple of 50mm);

3. The length of the protective tube immersed in the measured medium must be greater than the length of the temperature sensing element. Generally, the immersion length is recommended to be greater than 100mm, and the immersion length for the 0-50 ℃ range is recommended to be greater than 150mm to ensure measurement accuracy.

4. Bimetallic thermometers are not suitable for measuring the temperature of media in open containers.

5. During storage, installation, and transportation, collision with the protective tube should be avoided. Do not bend or deform the protective tube, and do not use the watch as a wrench.

6. Regular inspections should be conducted under normal use. It is generally recommended to do so every six months.

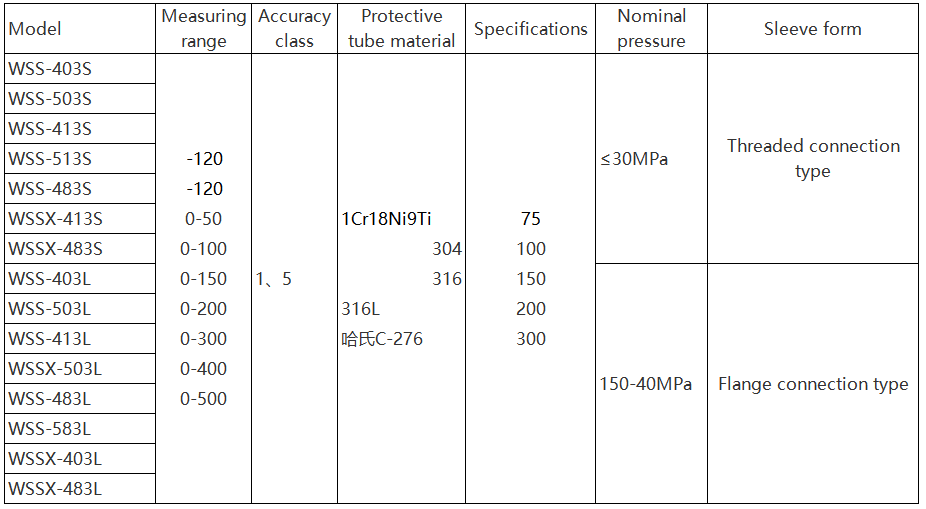

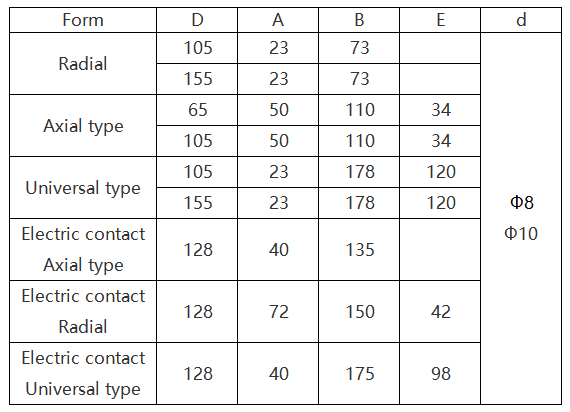

Note: Bimetallic thermometers can be equipped with various installation sleeves. For details on the form of hot installation sleeves, please refer to the hot installation sleeves;

The remaining materials of the protective tube are ordered according to the agreement: * indicates that the nominal pressure is ordered based on the flange pressure rating.
