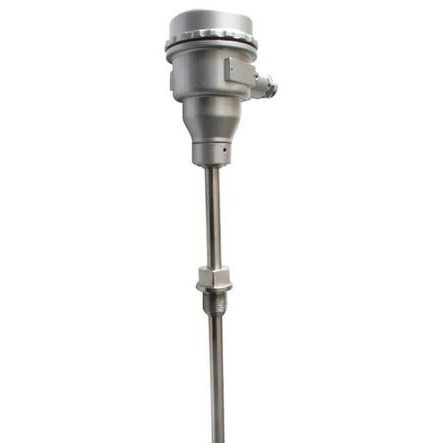

Application of WRN-0313T furnace top thermistor
WRN-0313T is suitable for power plant boiler roofs and other situations that require remote and high-pressure temperature measurement. Jinhu Lianyi Automation specializes in producing furnace top thermal resistors, which are suitable for power plant boiler roofs and other occasions that require remote and high-pressure temperature measurement.
Main technical parameters of WRN-0313T furnace top thermocouple and thermal resistance
Electrical export: M16x1.5
Connection size: M16x1.5
Protection level: IP65
Model and specifications of furnace top thermistor
| Model number | Graduation | Temperature measurement range ℃ | Nominal pressure | velocity of flow | Specification (L) | Specification (l) |
| WRN-0313T | K | 0-800 | ≤ 30MPa | ≤ 100m/s | 1000 2000 3000 4000 5000 6000 8000 10000 150000 20000 25000 | 50 100 150 |
| WRN2-0313T | ||||||
| WREK-0313T | E | 0-600 | ||||
| WREK2-0313T | ||||||
| WRNK-0913T | K | 0-800 | ||||
| WRNK2-0913T | ||||||
| WREK-0913T | E | 0-600 | ||||
| WREK2-0913T |
1) Thermocouple Level I ordered according to the protocol
2) The material of the protective tube is 1Cr18Ni9Ti, and other materials are ordered according to the agreement
