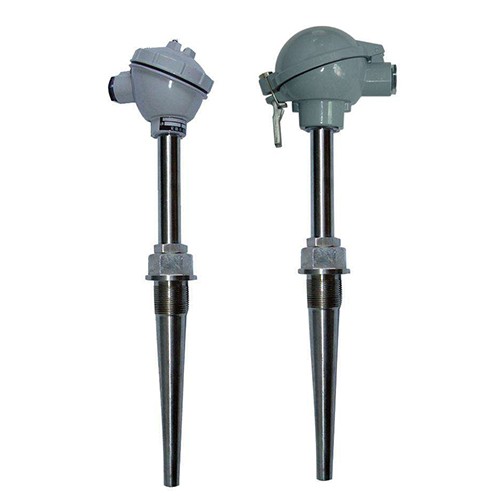

Assemble thermocouple

Product Description:

Product Features

Our factory mainly produces primary instruments such as thermocouples and thermal resistors, and the assembled thermocouples we produce adopt international IEC standards. At the same time, a series and spectrum of thermocouples designed uniformly by the Ministry of Machinery and Electronics Industry are adopted.

overview

Industrial assembled thermocouples are commonly used as transmitters for measuring temperature, in conjunction with display instruments, recording instruments, and electronic regulators It can directly measure the surface temperature of liquids, vapors, gases, and solids in the range of 0 ℃ to 1800 ℃ during various production processes.

According to national regulations, our company produces prefabricated thermocouples such as Platinum Rhodium 30-Platinum Rhodium 6, Platinum Rhodium 10 Platinum, Nickel Chromium Nickel Silicon, Nickel Chromium Copper, etc. that comply with IEC international standard graduation numbers.

This thermocouple typically consists of temperature sensing elements, mounting fixtures, and junction boxes, among other main components.

Optional models

Type B, S, K, E

Main technical parameters

Measurement range and basic error limit

Thermocouple category	code	Graduation	measuring range	Basic error limit
Nickel chromium constantan	WRK	E	0－800℃	±0.75%t
Nickel chromium nickel silicon	WRN	K	0－1300℃	±0.75%t
Platinum rhodium 13 platinum	WRB	R	0－1600℃	±0.25%t
Platinum rhodium 10- platinum	WRP	S	0－1600℃	±0.25%t
Platinum rhodium 30- Platinum rhodium 6	WRR	P	0－1800℃	±0.25%t

Note: t is the measured temperature value of the temperature sensing element (℃)

Thermocouple time constant

Thermal inertia level	Time constant (seconds)	Thermal inertia level	Time constant (seconds)
Ⅰ	90－180	Ⅲ	10-30
Ⅱ	30－90	Ⅳ	＜10

◆ Thermocouple nominal pressure: generally refers to the static external pressure that the protective tube can withstand and rupture at the working temperature.

◆ Small insertion depth of thermocouple z.ui: should not be less than 8-10 times the outer diameter of its protective sleeve (except for special products)

◆ Insulation resistance: When the ambient air temperature is 15-35 ℃ and the relative humidity is less than 80%, the insulation resistance is ≥ 5 megohms (voltage 100V). Thermocouples with splash proof junction boxes have an insulation resistance of ≥ 0.5 megohms (voltage 100V) when the relative temperature is 93 ± 3 ℃

◆ Insulation resistance at high temperatures: For thermocouples, the insulation resistance (per meter) between the hot electrode (including the double branch type) and the protective tube, as well as between the double branch hot electrodes, should be greater than the values specified in the table below.
