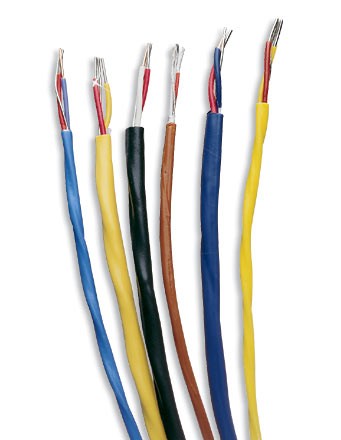

Multi strand compensation wire

The price of multi strand compensation wires is suitable for compensating wires used in electric thermocouples, used in temperature measurement and control systems in factories, mines, and scientific research departments such as power, metallurgy, petroleum, chemical, textile, etc. The compensation cable is easy to lay and has the characteristics of moisture resistance, fire resistance, high temperature resistance, aging resistance, etc. Shielding can prevent external interference.

Multi strand compensation wire price usage temperature:

Fire resistant and temperature resistant type:- 40℃~+250℃

Fire resistant and high temperature resistant:- 40℃~+380℃

Ordinary type:- 20℃~+100℃

Characteristics of multi strand compensation wire products

Rated temperature:- 60℃～+350℃

Execution standard: GB/T4989-94 is equivalent to IEC584-3 "Thermocouples Part 3- Compensation Wires"

Shielding: Tin plated copper wire, silver plated copper wire, stainless steel wire

Insulators: Teflon (fluoroplastic), silicone rubber, fiberglass

Compensation wire models are classified according to product varieties as follows: KX、NX 、KC、EX、JX、TX、SC、RC

a) The number of letters in the model corresponds to the scale mark of the thermocouple;

b) The letter "X" represents an extended compensating wire

c) The letter 'C' represents a compensating wire of the compensating type

d) The letter 'H' represents high temperature resistance

e) The letter 'R' represents multiple shares

f) The letter 'P' indicates shielding

g) The letter 'F' represents polytetrafluoroethylene material

h) The letter 'B' represents fiberglass material

i) The letter 'S' represents precision level compensation wire

j) The letter 'G' indicates that compensation wires are generally used

Temperature range: -40 ℃~+260 ℃~400 ℃. Compensation wires with temperature resistance of 0 ℃~1000 ℃ can be customized.

Note: SC type compensating wire can be equipped with R-type index thermocouple
