Product Description:
1、 Product Overview
The diffusion silicon pressure transmitter uses high-precision and high reliability pressure sensor components. Through highly reliable amplification circuits and precise temperature compensation. The precise packaging technology and sophisticated assembly process ensure the quality and performance of the product. Greatly meeting the needs of customers, the pressure interface and housing are made of stainless steel, which has good corrosion resistance and is suitable for various industrial process measurement and control.
2、 Product Features
-100KPa... Measurement of pressure range from 0 to 1 to 350 bar
Multiple industrial standard signal outputs are available for selection
The wiring method is connector or direct lead
Simple exterior design, high cost-effectiveness
Zero and full adjustment functions can be added as required
Multiple pressure interfaces to choose from
3、 Technical specifications
Range:- 100kpa~0～3.5MPa～35MPa
Comprehensive accuracy: 0.05% FS, 0.1% FS, 0.25% FS, 0.5% FS
Output signal: Analog signal: 4-20mA (two-wire system), 0-5V； 0-10V (three wire system);
Digital signal: RS485, Canbus bus bus, 0-100%
Supply voltage: 24 (12~36) VDC (amplified signal)
Pressure connection: G1/4, G1/2, 1/2NPT, 1/4NPT, M12 * 1.5, etc. (can be customized according to customer requirements)
Electrical connections: Hirschman connectors (DIN), M12 four core connectors, direct leads, aviation connectors, etc. (can be customized according to requirements)

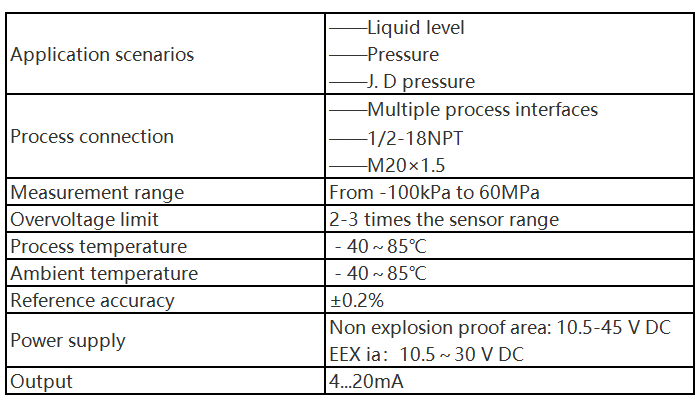

4、 Performance indicators
