YTZ

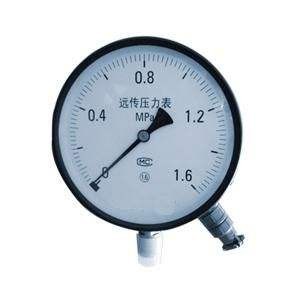

The YTZ-150 resistance remote pressure gauge and the YTZ-150B stainless steel resistance remote pressure gauge are suitable for measuring the pressure of gases and liquids that do not corrode copper and copper alloys, or stainless steel alloys. The resistance remote transmission pressure gauge transmits the measured value to a secondary instrument far away from the measuring point through a locator type sensor installed inside the instrument, in order to achieve centralized detection and remote control. In addition, the resistance remote transmission pressure gauge can simultaneously indicate the pressure on site, which is convenient for on-site process inspection.

The resistance remote pressure gauge can be connected to a diaphragm isolator (diaphragm body) to make a diaphragm type resistance remote pressure gauge, which is used to measure the pressure of highly corrosive, viscous, and easily crystallized media.

Main technical indicators of resistance remote transmission pressure gauge

1. Basic error: plus or minus 1.6 levels.

2. Measurement range: (Mpa)

(Special specifications, please specify when ordering)

0-0.16 0-0.25 0-0.4 0-0.6

0.1 0-1.6 0-2.5 0-4

0-6 0-10 0—16 0-25 0-40

-0.1-0.06 -0.1-0.15 -0.1-0.3 -0.1-0.5

-0.1-0.9 -0.1—1.5 -0.1—2.4

3. Working conditions (1) Environmental temperature:- 40-60℃

(2) Work pressure: Static load:

Used to measure 3/4 of the upper limit value

Alternating load: used to measure 2/3 of the upper limit value

Short term pressure: used up to the upper limit of measurement

(3) Relative temperature:< 85％

4. Technical data of sliding resistance transmitter: Initial resistance: 3-20 Ω

Full resistance: 340-400 Ω

The applied voltage at the terminal is less than 6V

5. Instrument outer diameter: Φ150mm

6. Connection size: M20X1．5
