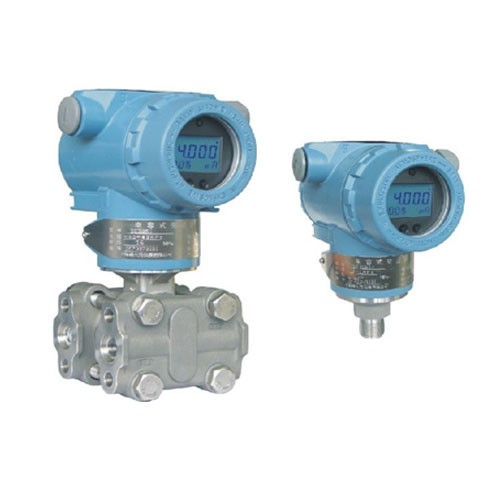

3051 pressure transmitter

The 3051 pressure transmitter has advantages such as reliable operation, stable performance, easy installation and use, small size, light weight, and high cost-effectiveness. Widely used in various industrial automation environments, involving water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military industry, petrochemicals, oil wells, electricity, ships, machine tools, pipelines and many other industries, suitable for measuring the liquid level, density and pressure of liquids, gases or steam, and then converting the pressure signal into a 4-20mA DC signal output. Pressure transmitters can be divided into three types based on their pressure measurement range: general pressure transmitters (0.001MPa~35MPa), micro differential pressure transmitters (0-1.5kPa), and negative pressure transmitters. The product consists of a measuring film and electrodes on both sides of the insulating film, each forming a capacitor. When the pressure on both sides is not consistent, it causes displacement of the measuring diaphragm, and the displacement is proportional to the pressure difference. Therefore, the capacitance on both sides is unequal, which is achieved through oscillation and demodulation.

Technical parameters of pressure transmitter:

Accuracy level: 0.25 level Basic error ± 0.25%

Nonlinear error: 0.3 level ≤± 0.3% FS

Lag error: ≤ ±0.3%FS

Output characteristics:

① 0-10mA output, load resistance 0-1.5K Ω

② 4-20mA output, load resistance 0-600 Ω

③ Constant current output internal resistance greater than 10M Ω

④ 2-wire 4-20mA output: standard power supply DC24V

Explosion proof mark: (RPT-III): Exia Ⅱ CT4-6

Main features:

1. Pressure transmitters have the characteristics of reliable operation and stable performance;

2. Specialized V/I integrated circuit, with few peripheral components, high reliability, simple and easy maintenance, small size, light weight, and extremely convenient installation and debugging;

3. Aluminum alloy die-casting shell, three end isolation, electrostatic spray protection layer, sturdy and durable;

4. 4-20mA DC two-wire signal transmission, strong anti-interference ability, long transmission distance;

5 LED、LCD、 The pointer has three types of indicator heads, making on-site reading very convenient. Can be used to measure viscous, crystalline, and corrosive media;

6. High accuracy and stability. In addition to the imported original sensors that have been laser corrected, fine compensation is provided for the comprehensive temperature drift and nonlinearity of the entire machine within the operating temperature range.

Main performance:

1. Widely used as the tested medium, it can measure oil, water, and paste materials compatible with 316 stainless steel and 304 stainless steel, and has a certain degree of anti-corrosion ability;

2. High accuracy, high stability, using imported original sensors, good linearity, and high temperature stability;

3. Small size, light weight, easy installation, debugging, and use;

4. Stainless steel fully enclosed shell, with good waterproofing;

5. The pressure sensor directly senses the pressure of the measured liquid level, without being affected by the foaming or deposition of the medium.
