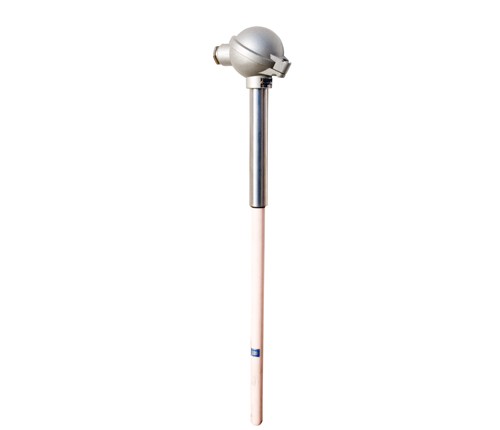

Anti-corrosion thermistor

Product Description:

Summary:

In certain special occasions, such as chemical plants, smelters, thermal power plants, etc., special materials and structures of thermocouples must be used.

Corrosion resistant coatings have excellent anti-corrosion properties. Except for molten metal lithium, potassium, sodium, hydrofluoric acid, and oxygen trifluoride with high flow rate liquid fluorine, they can resist almost all of their chemical media and can be used for a long time in the range of 0-250 ℃. If the fixed thread needs to be made into a corrosion-resistant structure, the thread cannot work in a pressure environment.

Titanium alloy pipes can withstand corrosion from seawater, various chlorides and hypochlorites, wet chlorine, and oxidizing acids (including fuming nitric acid), but are not resistant to corrosion from relatively pure reducing acids (sulfuric acid, hydrochloric acid). The temperature range of titanium alloy pipes is below 500 ℃, and this product still complies with JB/T9238-1999 and JB/T8622-1997.

Main technical indicators of corrosion-resistant thermistor

Name	Graduation	Temperature measurement range (℃)	Allowable deviation △ t (℃)
Platinum	Pt100	Please refer to the specification table for details	A or B level
Copper resistance	Cu50	-50~+100	±（0.3+6X10-3∣t∣）

All other technical indicators comply with JB/T9238-1999 Technical Conditions for Industrial Thermocouples and JB/T8622-1997 Technical Conditions.

Types and specifications of corrosion-resistant thermal resistors

Corrosion resistant thermistor
Model	Graduation	Coating	Temperature measurement range ℃	Diameter of protective tube d	specifications
WZP-130F WZP-230F	Pt100	F	-200~250	16+2	300×150 350×200 400×250 450×300 550×400 650×500 900×750 1150×1000 1650×150

WZP-330F WZP-430F WZP 2-130F WZP 2-230F		TC




WZP 2-330F WZP 2-430F		T	-200~500	16

WZP-131F WZP-231F		F	-200~250	12+2	225×75 250×100 300×150 350×200 400×250 450×300 550×400 650×500 900×750 1150×1000

WZP-331F		TC
WZP-431F
WZP 2-131F
WZP 2-231F
WZP 2-331F		T	-200~500	12
WZP 2-431F
WZC-130F	Cu50	F	-50~100	12+2
WZC-230F
WZC-330F		TC
WZC-430F		T		12
